High‑Quality Forged Steel Globe Valves – Threaded / Socket Weld End, Bolted & Welded Bonnet Valves | Hubballi, India

HARA Forged Steel Globe Valves are designed for precise flow control and throttling applications in high-pressure and high-temperature services. These valves are manufactured using high-quality forged steel and are suitable for a wide range of industrial applications.

Hara Engineering is a leading Manufacturer and Supplier of Forged Steel Globe Valves Threaded and Socket Weld End in Hubballi, Karnataka, India.

Our Threaded and Socket Weld End Globe Valves are available in Class 800 and Class 1500 with Bolted Bonnet and Welded Bonnet configurations. Designed for precise flow control and throttling in high-pressure and high-temperature industrial services, these valves are available in sizes 10mm to 50mm meeting ASME, API and international standards.

Class 800 Standard Port – Bolted Bonnet – Threaded and Socket Weld Ends

Dimension Size (mm.)
10 15 20 25 32 40 50
Standard Port (A) 6 9 12 17 23 28 36
End to End (B) 88 88 92 106 125 125 140
Center to Top – H (Closed) 159 159 169 176 252 252 254
Hand Wheel (C) 90 90 90 100 150 150 150
Weight (Kgs.) 2.8 2.5 2.8 3.5 8.9 8.5 13.5

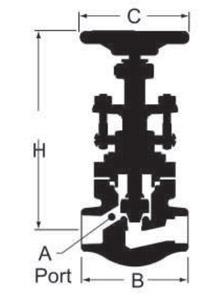

Forged Steel Globe Valve Class 800 Threaded End Manufacturer Hubballi - Hara Engineering

Class 1500 Standard Port – Bolted Bonnet – Threaded and Socket Weld Ends

Dimension Size (mm.)
10 15 20 25 32 40
Standard Port (A) 5 8 9 14 20 25
End to End (B) 92 92 106 125 140 140
Center to Top – H (Closed) 169 169 176 252 254 254
Hand Wheel (C) 90 90 100 150 150 150
Weight (Kgs.) 2.9 2.8 3.5 8.5 13.8 13.8

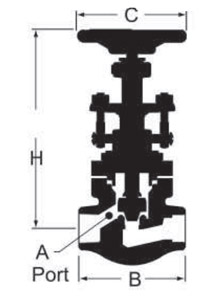

Forged Steel Globe Valve Class 1500 Threaded End Supplier Hubballi - Hara Engineering

Class 800 Standard Port – Welded Bonnet – Threaded and Socket Weld Ends

Dimension Size (mm.)
10 15 20 25 32 40 50
Standard Port (A) 5 8 9 14 20 25 32
End to End (B) 88 88 92 106 125 125 140
Center to Top – H (Closed) 159 159 169 176 252 252 254
Hand Wheel (C) 90 90 90 100 150 150 150
Weight (Kgs.) 2.6 2.3 2.6 3.2 8.4 8.2 13.1

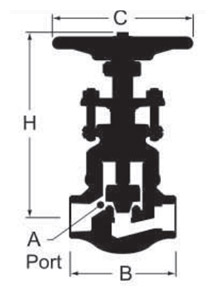

Forged Steel Globe Valve Class 800 Welded Bonnet Socket Weld End - Hara Engineering

Class 1500 Standard Port – Welded Bonnet – Threaded and Socket Weld Ends

Dimension Size (mm.)
10 15 20 25 32 40
Standard Port (A) 5 8 9 14 20 25
End to End (B) 92 92 106 125 140 140
Center to Top – H (Closed) 169 169 176 252 254 254
Hand Wheel (C) 90 90 100 150 150 150
Weight (Kgs.) 2.6 2.5 3.4 8.2 13.2 13.1

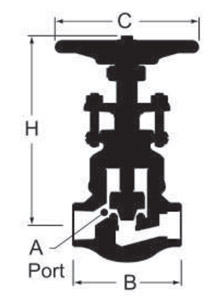

Forged Steel Globe Valve Class 1500 Welded Bonnet Socket Weld End - Hara Engineering
