High-Performance Forged Steel Check Valves Flanged Ends, Bolted Cover and Piston Check Valves – Hubballi, India
These valves are manufactured using high-quality forged steel and are suitable for a wide range of industrial applications.
Hara Engineering is a leading manufacturer and supplier of Forged Steel Check Valves Flanged End in Hubballi, Karnataka, India.

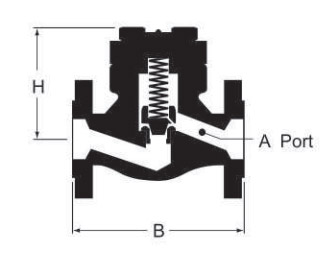

Available in Class 150, 300, 600 and 1500 with Piston and Bolted Cover configurations, in sizes 15mm to 50mm. Designed to prevent backflow in high-pressure and high-temperature industrial pipelines, meeting API, ASME and NACE international standards.Class 150 Standard Port – Piston – Bolted Cover – Flanged Ends
| Dimension | Size (mm.) | ||||
|---|---|---|---|---|---|
| 15 | 20 | 25 | 40 | 50 | |
| Port Diameter | 9 | 12 | 17 | 28 | 36 |
| Face to Face | 152 | 178 | 203 | 229 | 267 |
| Center to Top – H | 56 | 65 | 74 | 104 | 106 |
| Weight (Kgs.) | 3.2 | 4.0 | 6.0 | 12.0 | 18.5 |

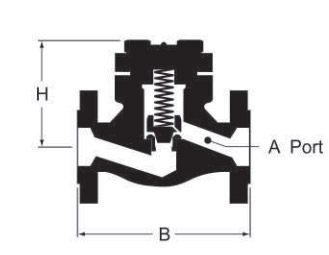

Class 300 Standard Port – Piston – Bolted Cover – Flanged Ends
| Dimension | Size (mm.) | ||||
|---|---|---|---|---|---|
| 15 | 20 | 25 | 40 | 50 | |
| Port Diameter | 9 | 12 | 17 | 28 | 36 |
| Face to Face | 152 | 178 | 203 | 229 | 267 |
| Center to Top – H | 56 | 65 | 74 | 104 | 106 |
| Weight (Kgs.) | 1.4 | 1.8 | 3.0 | 6.2 | 9.2 |

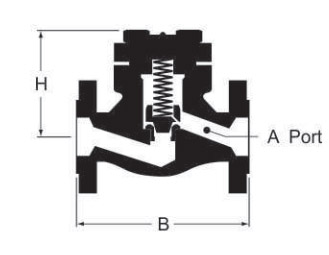

Class 600 Standard Port – Piston – Bolted Cover – Flanged Ends
| Dimension | Size (mm.) | ||||
|---|---|---|---|---|---|
| 15 | 20 | 25 | 40 | 50 | |
| Standard Port (A) | 15 | 20 | 25 | 40 | 50 |
| Port Diameter | 9.0 | 12.0 | 17.0 | 28 | 31 |
| Face to Face (B) | 165 | 190 | 216 | 241 | 292 |
| Center to Top – H | 56 | 65 | 74 | 104 | 106 |
| Weight (Kgs.) | 5.3 | 6.5 | 8.2 | 17.2 | 23.8 |

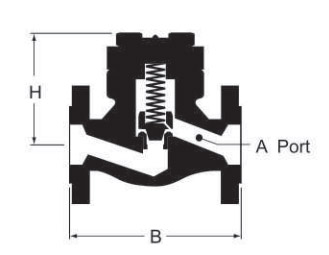

Class 1500 Standard Port – Piston – Bolted Cover – Flanged Ends
| Dimension | Size (mm.) | |||
|---|---|---|---|---|
| 15 | 20 | 25 | 40 | |
| Standard Port (A) | 15 | 20 | 25 | 40 |
| Port Diameter | 9.0 | 12.0 | 17.0 | 28 |
| Face to Face (B) | 216 | 229 | 254 | 305 |
| Center to Top – H | 65 | 74 | 104 | 106 |
| Weight (Kgs.) | 3.2 | 4.0 | 6.0 | 12.0 |
