High Quality Forged Steel Check Valves – Threaded / Socket Weld Ends, Piston & Bolted Cover Check Valves | Hubballi, India
HARA Forged Steel Globe Valves are designed for precise flow control and throttling applications in high-pressure and high-temperature services. These valves are manufactured using high-quality forged steel and are suitable for a wide range of industrial applications.

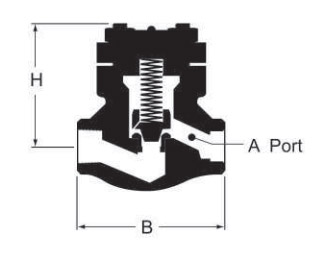

Class 800 Standard Port – Piston – Bolted Cover – Threaded and Socket Weld Ends
| Dimension | Size (mm.) | ||||||
|---|---|---|---|---|---|---|---|
| 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| Standard Port (A) | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
| Port Diameter | 6 | 9 | 12 | 17 | 23 | 28 | 36 |
| End to End (B) | 88 | 88 | 92 | 106 | 125 | 125 | 140 |
| Center to Top – H | 56 | 56 | 65 | 74 | 104 | 104 | 106 |
| Weight (Kgs.) | 1.5 | 1.4 | 1.8 | 3.0 | 6.5 | 6.2 | 9.2 |

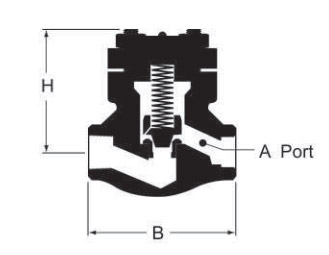

Class 1500 Standard Port – Piston – Bolted Cover – Threaded and Socket Weld Ends
| Dimension | Size (mm.) | |||||
|---|---|---|---|---|---|---|
| 10 | 15 | 20 | 25 | 32 | 40 | |
| Standard Port (A) | 10 | 15 | 20 | 25 | 32 | 40 |
| Port Diameter | 6 | 9 | 12 | 17 | 23 | 28 |
| End to End (B) | 92 | 92 | 106 | 125 | 140 | 140 |
| Center to Top – H | 65 | 65 | 74 | 104 | 104 | 106 |
| Weight (Kgs.) | 1.9 | 1.8 | 3.0 | 6.5 | 9.3 | 9.2 |
